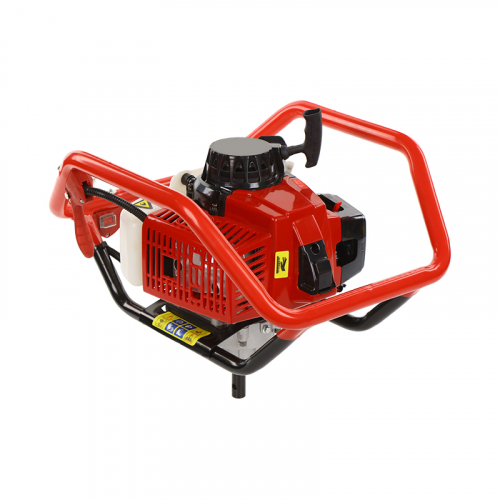

BGD-680L10 Earth Auger

Suitable for 1or 2 person operate, Rectangle form to surround engine and gear case ,with 52cc 2 stroke engine you can drill deep into the earth in just seconds.
Tree planting, fences , fishing and multiple other landscaping and agriculture needs.



This product is currently out of stock and unavailable.

SKU: BGD-680L10  Categories:,
1. Supper Easy starter:
Structural design : There are 2 pcs springs and 1 pc needle bearing.
With cooling hole design on the starter. it helps the engine to dissipate heat and prolong the service life of the whole machine.

2.Earth auger fuel tank
The fuel filter from Australian, it can effectively filter fuel impurities and make the engine more effective.
The external air balance is used to work together with the fuel tank cap to reduce the atmospheric pressure in the fuel tank, double insurance,and smoother fuel supply to engine.

3.Cylinder Cover
The cylinder cover with shroud design avoids the hot air emitted by the engine from the user, so that the user is not disturbed by the hot air.

4.Trigger and ON/OFF
Enlarging and upgrading the dual-throttle handle, which is stronger, more durable and more beautiful.
Reasonable internal structure design avoids the phenomenon that the throttle cable does not return.

5.Professional handle bar
Manganese steel - cold-rolled steel, the design width conforms to human mechanics.
Dip-coating treatment after spraying can effectively improve slip resistance and comfort.
Effectively protect the engine.The torque of 1200N does not deform, and the national standard test is carried out.

6.Gearbox
Clutch: Thickened friction wall, full welding to strengthen welding process, high temperature quenching.wearable!
Gearbox: Use the same gear material (20CrMnTi high temperature carburizing steel) as the same gear material as the high-tech products such as airplanes and automobiles.
The processing technology of chamfering the teeth is smooth and wear-resistant.
Weight 12 kg
Dimensions 42 x 39 x 44 cm
Engine Model

1E48F-II

Engine Type

2 Stroke Air Cooled Single Cylinder

Engine Power

2.3kw

Displacement

68CC

Max Output Speed

8800±300 rpm/min

Fuel Tank Capacity

1600ml

Fuel

Gasoline mix 2 stroke Oil (25:1)

Gear Case Output Rate

29:1

Output Shaft Size

20/22mm

Max Drive Ability

≤ φ 300mm  auger bit

Auger Bit Size

φ40/60/80/100/150/200/250/300mm

Certification

Ce Euro-V EPA EMC ISO
